WEB Deck® Catenary Wire System

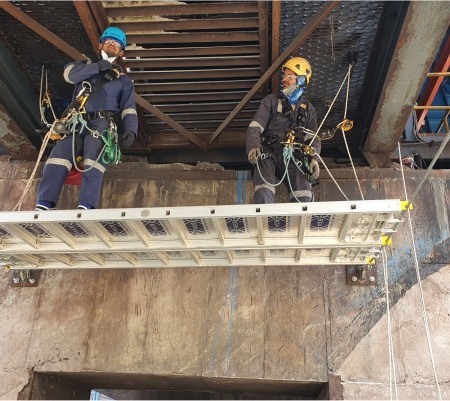

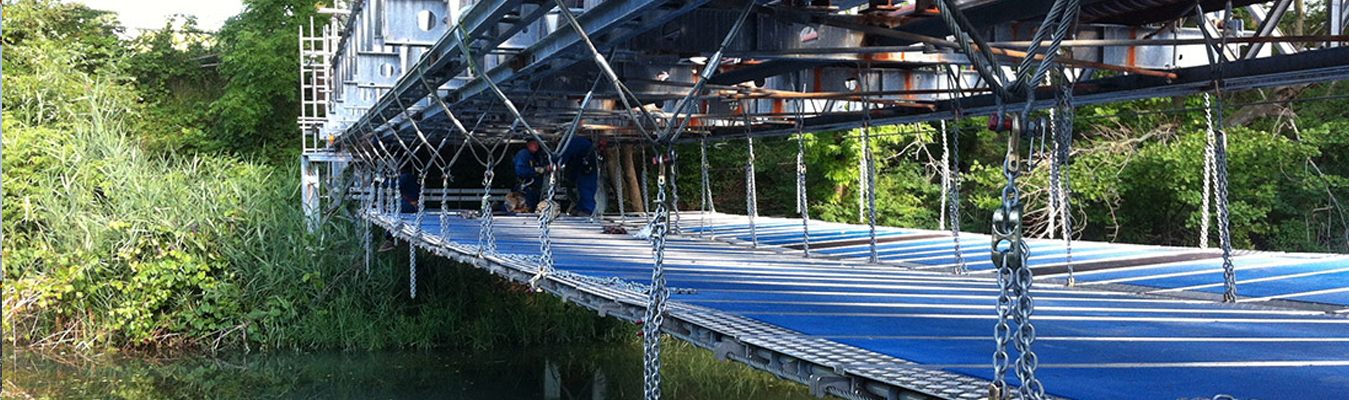

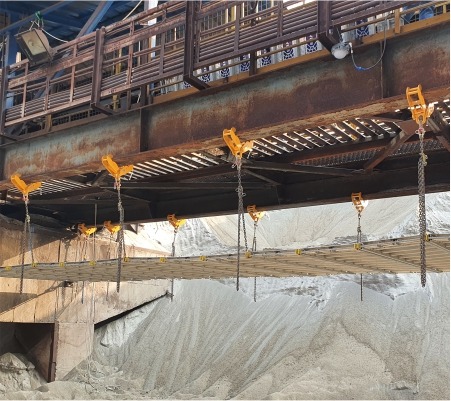

The WEB Deck® Catenary Wire System provides a standardized and efficient solution for shorter span applications. Constructed with high-strength steel wires, it is ideal for bridge maintenance, building facades, and confined spaces. The system offers modular components for efficient installation, enhanced safety features such as secure attachment mechanisms, and compliance with industry standards. Customization options, including debris netting and specialized connectors, further extend its versatility for challenging applications.
| System Type | Suspended Access Working Platform using Catenary Wire |
|---|---|
| Catenary Wire Material | High-tensile grade 1960 wire (tensile strength 1960 N/mm²) |
| Wire Rope Specifications | – Diameter: 16mm – Construction: 6 x 36 (six strands, 36 wires per strand) |
| Safe Working Load (SWL) | 2kN/m² |
| Anchoring System | – Anchored using bow shackles, wire rope tensioners, wedge sockets, and master links – Designed for maximum 500kg hauling anchor |
| Installation Requirements | – Must follow site-specific engineering designs – Rope access and fixed platform installation methods available – Requires approved training and PPE compliance |
Reliable Suspended Access: Ensures safe work positioning for maintenance teams
Adaptable to Complex Sites: Works efficiently in under-deck, offshore, and high-rise applications
Minimal Structural Impact: Reduces the need for heavy infrastructure modifications
High Load Capacity: Supports 2kN/m², making it suitable for industrial and construction projects
Robust Engineering: Uses high-tensile steel wire rope with a secure anchoring system
Compliance & Safety: Designed as per EN795 rope access anchor point standards
