WEB Deck® is a revolutionary new suspended deck system that provides rapid access for maintenance or refurbishment teams to carry out their projects with maximum safety & productivity when working at height.

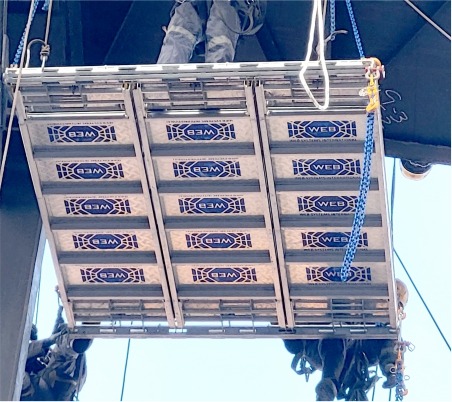

The work positioning system is a simple, modular, lightweight, and strong design that allows for rapid installation and dismantling.

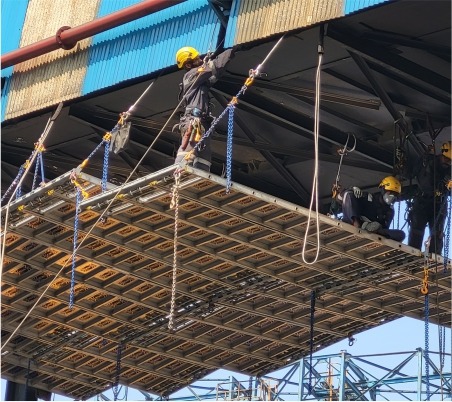

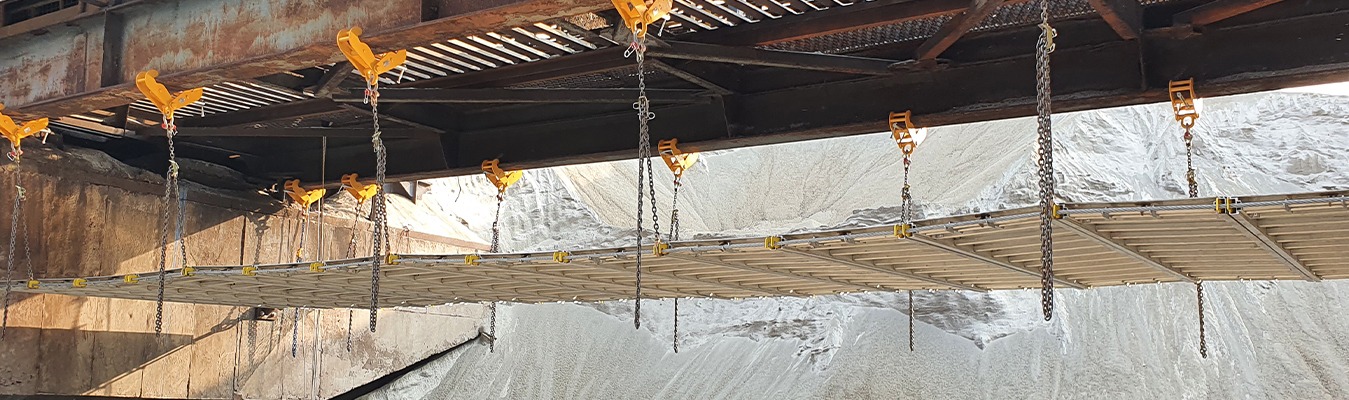

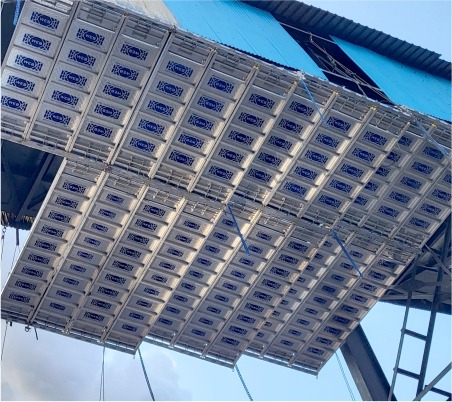

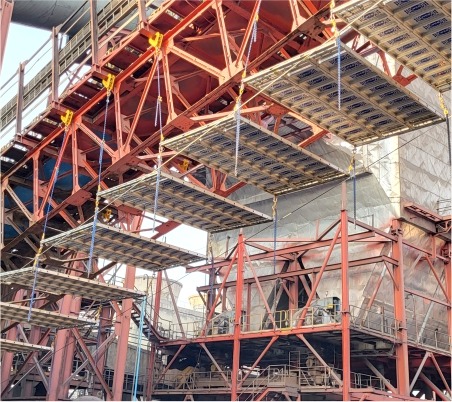

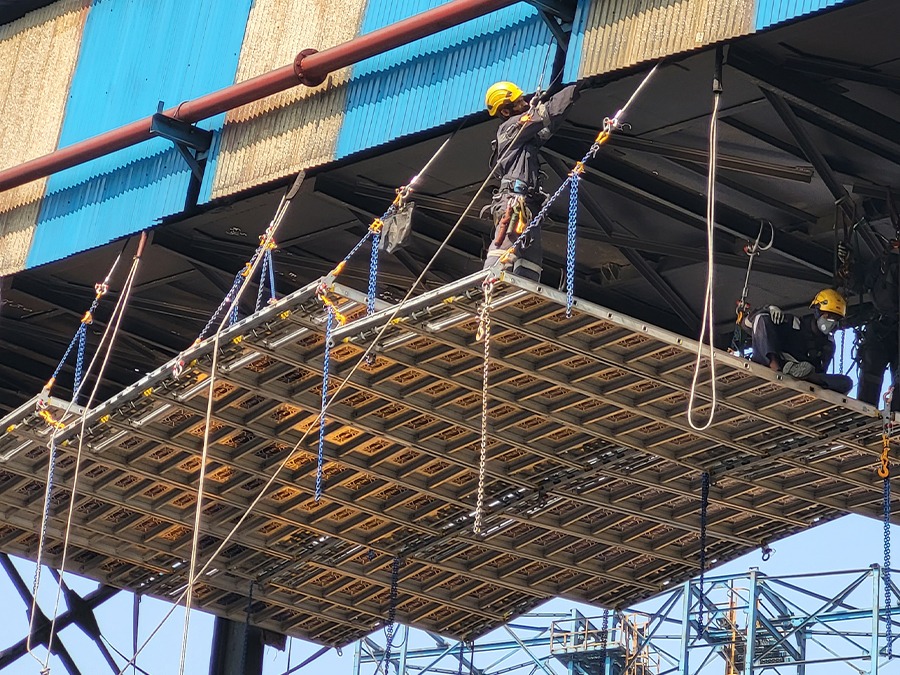

The suspended decking system is installed on the underside of bridges, jetties, pipe racks, conveyor systems and associated high-rise infrastructure.

The modular decking system is engineered as per the site’s unique requirements for enhanced safety at the site. The system can be customized with options for tidal situations and for encapsulation.

Dimensions- (1m, 2m or 3m lengths ) x 600mm wide
Uniform Distributed Load (UDL) – 2.5kN/m 2
Factor of Safety (FOS) – 4:1
Material – Aluminium

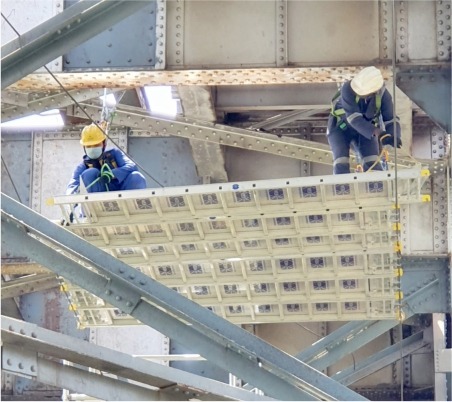

Fast Installation: After installation of the anchoring, up to 270m2 of WEB Deck® could be fitted to an infrastructure underdeck in one shift

Safe: The working at height techniques utilized to install WEB Deck® reduce exposure time to working at height thereby reducing construction-related fatalities

Low Cost: Efficient installation leads to lower labour costs. Once installed WEB Deck®  can lead to significant time and cost-saving on the overall project.

Low Self-Weight: Lightweight at 20 kg/m2

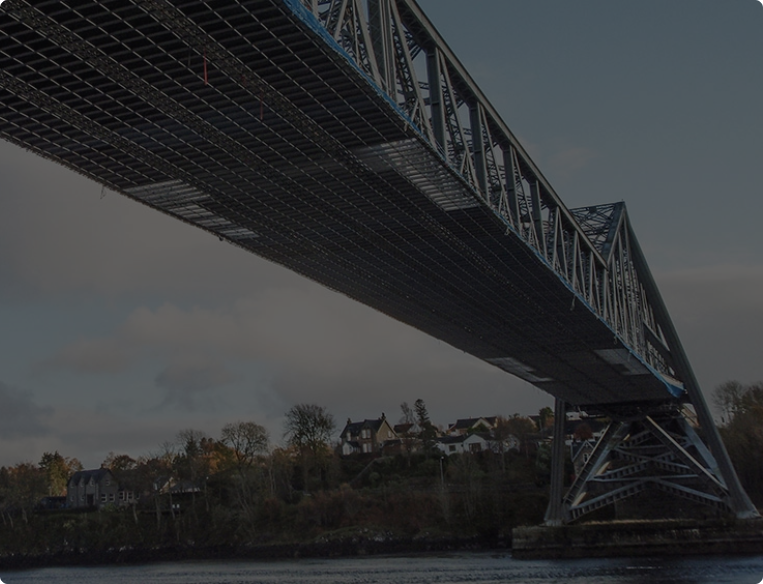

Full Containment: WEB Deck®  is fully compatible with side containment and/or full encapsulation. We would recommend our WEB Net®  product for netted encapsulation. The system can also be provided with a protective handrail system

Tidal: WEB Deck® – Grated aluminium finish for tidal conditions
